These are the complete AutoCAD menu for GPDGN.

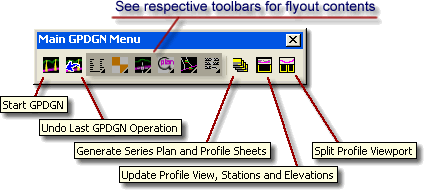

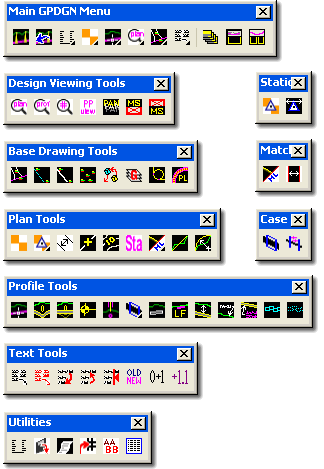

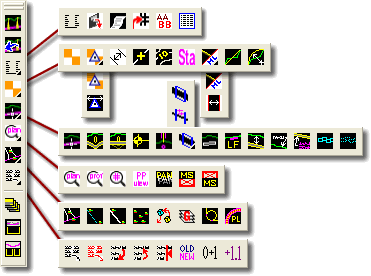

GPDGN Menu" toolbar contains all of the other toolbars as flyouts.

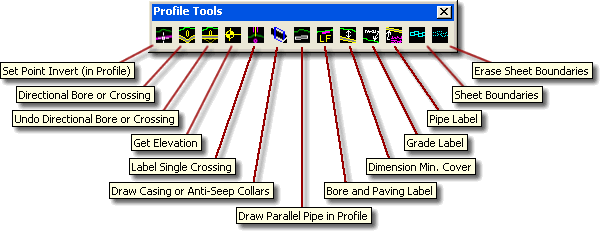

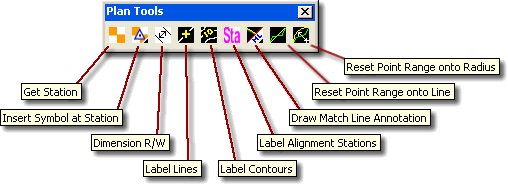

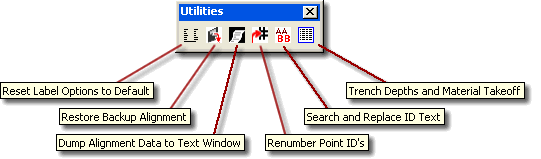

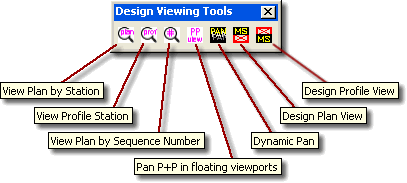

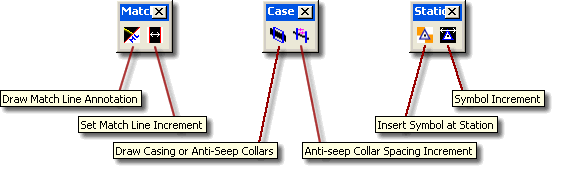

Each toolbar and the tooltips for the buttons it contains
are shown below

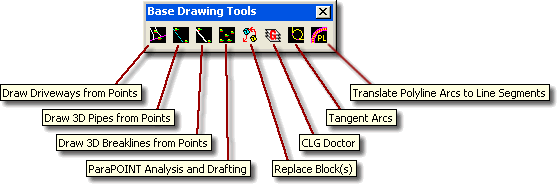

Both ParaPOINT and CLG Doctor are included with ParaP&P at no additional

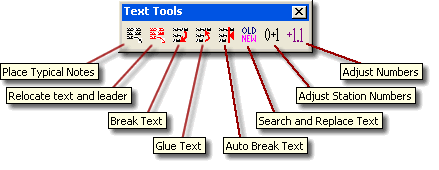

TNOTE and additional text handling applications are included with ParaP&P
at no additional charge. Our search and replace text function can replace
text within dimensions and block attributes. Our number adjustment functions
operate on the numeric portion of text strings and will recognize and adjust
station format numbers within text strings, e.g. in a station format string
such as "STA. 123+45.67 LINE S-1" the station portion can be increased,
decreased, or have its units of precision reduced or increased with a simple
pick. When reducing units of precision the new number will be rounded up if
appropriate and zeros will be added for any new digits required by increasing
units of precision.
